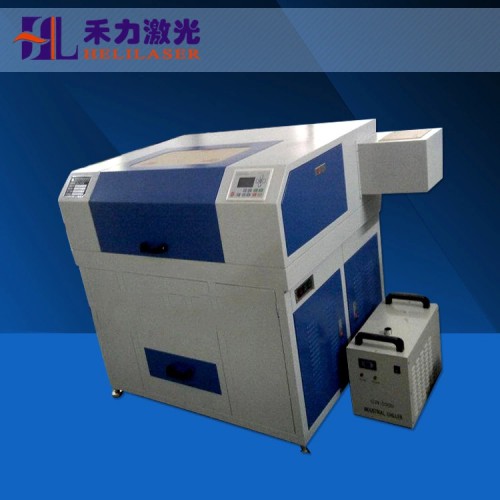

HL-T laser engraving and cutting machine

HL-640T/HL-0906T/HL-1280T/HL-1390T/HL-1490T/HL-1590T/HL-1680T/HL-1610T/HL-1995T/HL-2512T/1527T

機型簡介Means ofindicators

禾力T系列激光機為禾力激光推出的新機型，機器配有至少兩個激光頭，距離隨意移動，整機配有兩套激光管，兩激光電源，配有進口直線導軌，進口步進電機及驅動器，不銹鐵鋒窩底板，軟件采用世界領先的自主研發控制軟件，可實現雙激光頭功率的分別調整解決了以往功率不能調的問題，雙頭激光切割機，使工作效率成倍增長，本機廣泛應用于服裝、皮革、貼布繡花等行業。

Wo force T series laser machine for Heli laser launched new models, the machine is equipped with at least two laser head, moving away from random, the machine is equipped with two sets of laser tube, laser power supply, equipped with imported linear guide rail, imports of stepper motor and driver, stainless Zhifeng Waterloo floor. The software uses the world's leading independent research and development control software can realize double laser head power is adjusted separately solves the power is not the problem, double head laser cutting machine, work efficiency exponentially, this machine is widely used in clothing, leather, cloth embroidery and industry.具體特點Specific features

1、特殊的機械結構，激光頭位置可隨意調節，也可單頭工作，操作方便

2、最新的禾力操作軟件，可分別控制兩個激光頭的功率，可使兩個激光頭切割效果完全一樣

3、大功率激光器，并配有全進口雙光路反射系統,最大減少光的損耗，保證切割深度一致

4、主機配有128M的三星存貯器，可存多個加工文件。

5、雙頭工作，使得工作效率成倍增長。

6、配置進口雙導軌，三相電機、三相驅動器，使設備運行更加穩定

7、采用獨特的智能預測算法和改進型的控制算法，確保平衡、高效加工。

1、Special, mechanical structure ,laser location of the first free-conditioning ,but also the first single ,convenient operation

2、The lasest HE LI operating software ,which can control two of the first laser power ,will enable two laser cutting head is fully consistent results

3、High power lasers ,and a double –wide imports of optical reflector system ,the largest reduction of optical reflector system ,the largest reduction of optical loss, ensuring consistent cutting depth

4、Mainframe equippled with 128MB of Samsung memory, processing can be saved over documents

5、Double the work, so doubling the efficiency

6、Configuration import dual -three-phase motors,three-phase drive ,the more stable operating

equipment

7、using a unique intelligent prediction algorithm and improved control algorithms, to ensure a balanced and efficient processing.

詳細配置Detailed configuration

A.  德國原裝進口步進電機及驅動系統

a.Germany imported fully stepper motor and drive systems

B .HELILASER控制系統

b. HELILASER control system

C.采用國外進口直線導軌

c. Foreign imports in linear guideway

D.雙傳輸方式：工業串口、USP串口

d. Dual transmission of USB 2.0

E.中英文液晶顯示，人性化按鍵控制板

e. Chinese/English LCD, Humanity button panels

F.國產激光器（70/80）選配

f. Homemade laser(70/80)matching

G.光路系統采用新加坡全進口激光鏡片

g. Optical system uses laser Singapore imports all lenses

H.高強度不銹鐵蜂窩底板

h. High strength stainless Rail cellular integration backplane

I.機箱一體化結構

i. Chassis integration structure

J.支持U盤下載數據

j. Support U-download data

技術參數Technical-parameters

產品型號/Machine model HL-640T HL-960T HL-1080T HL-1280T

激光類型/Laser type        國產CO2激光器/hermetic and detached co2 laser tube

激光功率/Laser power       65w/80w/100w

雕刻面積/Engraving area     600mm*400mm 900*600mm 1000*800 mm 1200*800 mm

雕刻速度/Engraving speeds        0-2400mm/s

切割速度/Cutting speeds          0-3600mm/s

重復準確度/Repeating locating      ±0.05mm

運動系統/Moving system       CNC控制系統/CNC controlling units

冷卻方式/Cooling mode        強制水冷及保護系統/water-cooling and protection system

工作電壓/Working voltage       220±10% 50HZ

整機功率/Whole power           1250w

工作溫度/Operating temperature    0℃-45℃

工作濕度/Operating humidity       5%-95%

控制軟件/Controlling software    正版禾力激光軟件/original Helilaser software

支持格式/Graphic format supported   BMP PLT AI DXF DST

外形尺寸/Size                        1300*1050*1050

整機重量/Gross weight           170kg/230 kg/270 kg/320 kg

適用材料Applicable Materials

本品適用于木制品、紙張、書包，皮革、布料、有機玻璃、環氧樹脂、亞克力、毛料、塑料、橡膠、瓷磚、水晶、玉石、毛絨，竹制品等非金屬材料。

This product is suitable for wood, paper, bags, leather, cloth, organic glass, epoxy resin, acrylic, wool, plastic, rubber, ceramic, crystal, jade, plush, bamboo products and other non-metallic materials.

適用行業Applicable Industry

本類機型機器適用于服裝繡花、書包，皮革制品、竹木制品、電子電器、模型、工藝品、廣告、包裝印刷、不干膠，紙制品等行業

This dinds of model apply to cloth. . leather . tabuectoy . electronics and electronic appliance .model.crafts gift. ehe advertising .package printing.paper products industry.
